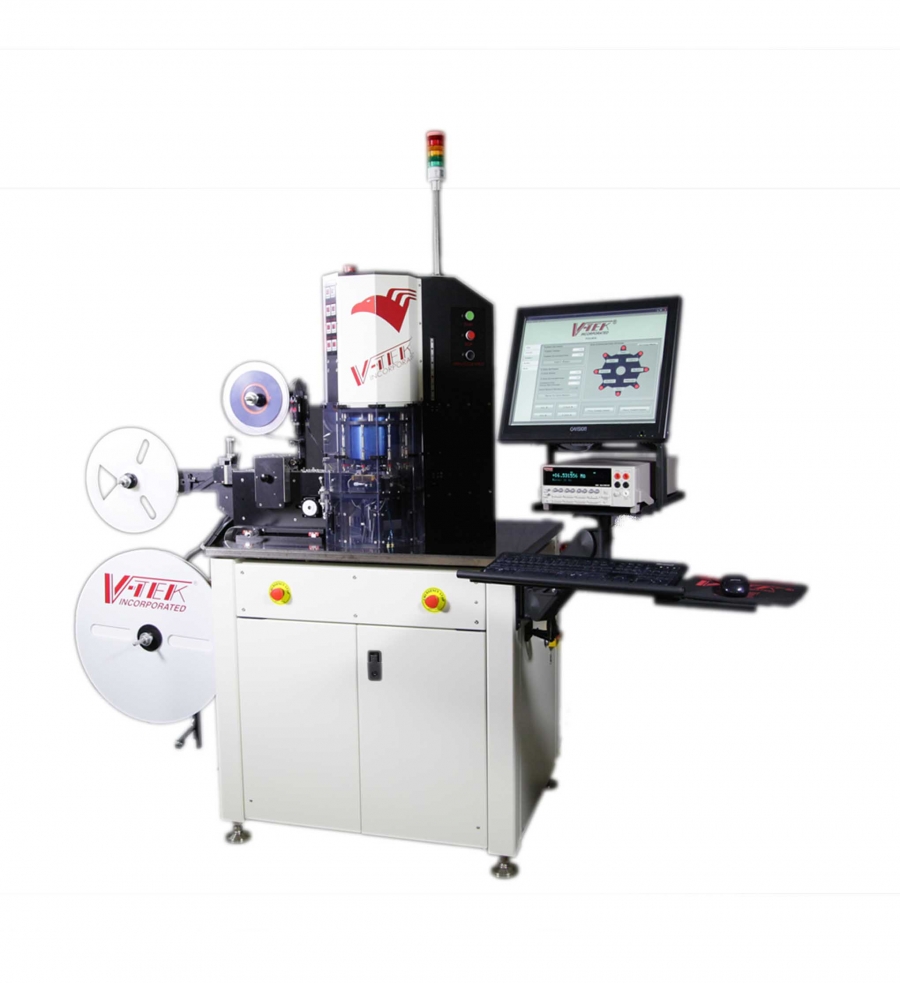

TM-700
The TM-700 is a turret-based processing system capable placing small devices into carrier tape, up to 22,000 parts per hour.
Not quite what you are looking for?
Speak with our experts today to discuss bespoke dimensions and specifications, pricing, and further details.
It is also designed as an easily configurable system allowing for up to 5 independent processes prior to reject binning and tape output. With its servo-controlled vertical motion, the Hawk is able to run today’s delicate parts through multiple processes with precise acceleration/deceleration as needed. The TM-700 can be converted easily between different input media and part size as determined by configuration.
- 0402 and greater
- Smaller sizes possible
- Bowl (CCW or CW)
- Universal Tube Feeder
- Test (Multiple-site capable around turret)
- Vision Inspection (orientation, Mark, Package Inspection)
- Laser marking
- Reject Sorting
- Available 2D in-pocket inspection prior to seal
- Adjustable tape sizes 8-24mm
- Heat or PSA seal
Height: 208cm
Width: 213cm
Depth: 86cm
Weight: 98.5Kg
Power: 210VAC ~ 240VAC 8A max
Air: 15 SCFM at 80 PSI
UPH: up to 22,000
The units per hour is limited by the input device and processes required prior to placement in the output device
